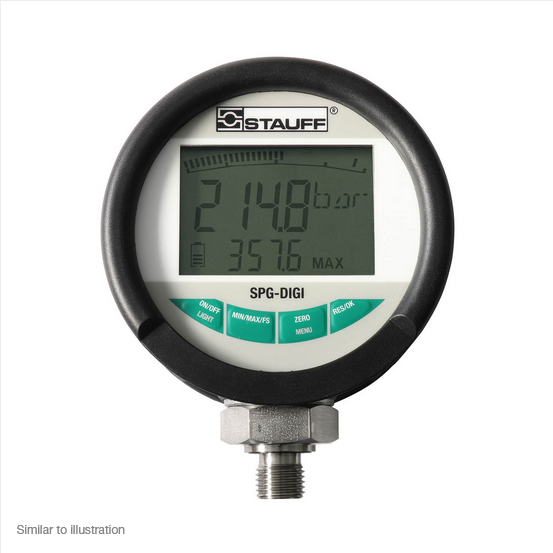

The STAUFF SPG-DIGI digital pressure gauges are designed
for digital measurement and display of pressure in hydraulic
systems, especially for oils, lubricants and water. Current
measured values as well as min and max values can be
displayed with a precision of 0.5% of the full scale value

The measurement data are stored in the internal memory
with a resolution of up to 100 ms for short measurements and
a pressure peak monitoring of 10 ms. Up to ten measurement
series can be stored in the device. The maximum
measurement duration for each measurement is 24 h.

The SPG-DIGI Digital Pressure Gauges are available individually, or as part of a complete pressure test kit. They are very sturdy, reliable, easy to use and come with the CE mark (evidence of conformity compliance).

Features:

• Bar graph display (drag pointer)
• Backlit display
• Zero point correction
• Battery status indicator
• Gauge ability to swivel 360°

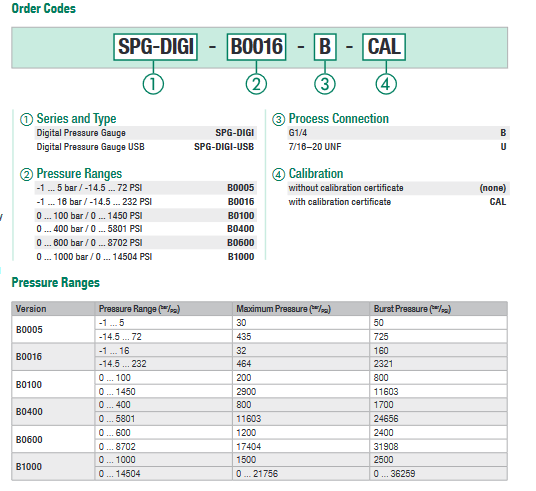

SPG-DIGI-B0016 -1 -+16 BAR(-14.5-+230)PSI DIGITAL GAUGE SPG-DIGI-B0016-B 1810000166

SPG-DIGI-B0100 0-100 BAR (0-1450)PSI DIGITAL GAUGE SPG-DIGI-B0100-B 1810000167

SPG-DIGI-B0400 0-400 BAR(0-5800)PSI DIGITAL GAUGE SPG-DIGI-B0400-B 1810000168

SPG-DIGI-B1000 0-1000 BAR (0-14500) PSI DIGITAL GAUGE SPG-DIGI-B1000-B 1810000225
