SINGLE COUNTER-BALANCE VALVES c/w SIGNAL RESTRICTOR
VOSL/V1516 Series
Steel body

The 1516 series is built with zinc-plated steel bodies to ensure a top level of strength and durability, these valves can reach a work pressure of 400 bar. All valves in the range are equipped with pilot signal restrictors to ensure smooth and safe operation in every load handling application

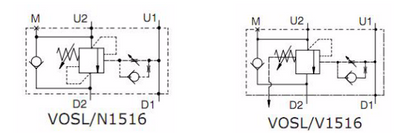

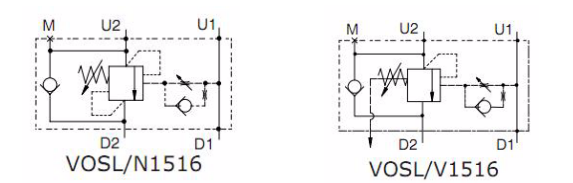

V1516 series - As per N1516 but has the spring chamber isolated from system back pressure by a seal and vented to atmosphere. Ideal for use with closed centre spools
