SINGLE COUNTER-BALANCE VALVES c/w SIGNAL RESTRICTOR

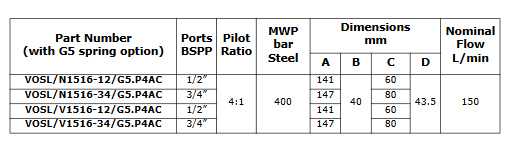

VOSL/N1516 Series
Steel body

The 1516 series is built with zinc-plated steel bodies to ensure a top level of strength and durability, these valves can reach a work pressure of 400 bar. All valves in the range are equipped with pilot signal restrictors to ensure smooth and safe operation in every load handling application

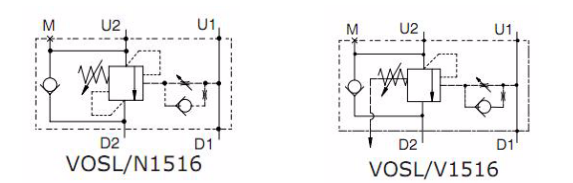

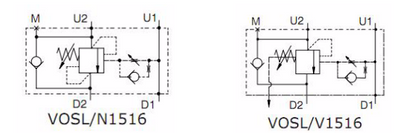

N1516 series - This valve controls a moving load preventing it from moving ahead of the pump and locks the load in nany position on U1. It also provides static overload and thermal expansion protection when used in combination with an open centre spool valve. It permits free flow from D2 to U2 and blocks the flow from U2 to D2 until a pilot pressure generated at D1/U1 is sufficient to pilot the U2 port open. This model is sensitive to back pressure on D2 in return mode.
