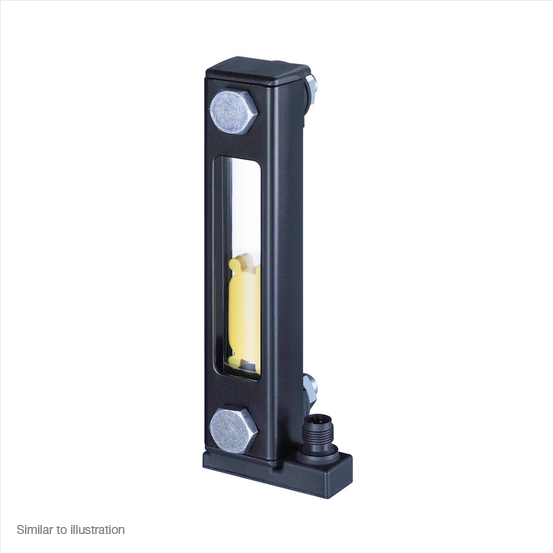

SNKK Series Level Gauges
Stauff
- Regular price
- Price: $265.15 AUD
- Regular price
-
List Price:
$265.15 AUD - Sale price
- Price: $265.15 AUD
- Unit price
- per
5% off all orders over $1000 | Ends:
1910002594
Couldn't load pickup availability
PRODUCT DESCRIPTION
Visual / electrical fluid level indication in hydraulic reservoirs
with maximum tank pressures not exceeding 2 bar / 29 PSI;
ideal for applications in which space is limited
hydraulic fluids (HL and HLP)
For the individual components of the level gauge (sight glass,
housing, sealings, bolts), alternative materials for improved
UV or chemical resistance, low-temperature applications
down to -50°C / -58 °F and use with special media (such as
bio-degradable fluids, diesel oils, gasolines) are available on
request.
with maximum tank pressures not exceeding 2 bar / 29 PSI;
ideal for applications in which space is limited
Nominal Sizes and Designs
- 6 nominal sizes from 127mm / 5.00in to 381mm / 15.00in
- Compact design allows space-saving installation:
- Always 40mm / 1.57in shorter than Level Gauges
- SNK of the comparable nominal size
- Display either undivided (SNKK-127 ... 176) or subdivided
- by strut(s) into 2 (SNKK-254) or 3 sections (SNKK-305 and
- SNKK-381)
Media Compatibility
Suitable for use with Mineral and Petroleum basedhydraulic fluids (HL and HLP)
Materials
- Housing made of Aluminium, black powder-coated
- Sight tube and plugs made of Polyamide (PA)
- Float made of Polypropylene (PP)
- Sealings made of FKM (Viton®)
For the individual components of the level gauge (sight glass,
housing, sealings, bolts), alternative materials for improved
UV or chemical resistance, low-temperature applications
down to -50°C / -58 °F and use with special media (such as
bio-degradable fluids, diesel oils, gasolines) are available on
request.

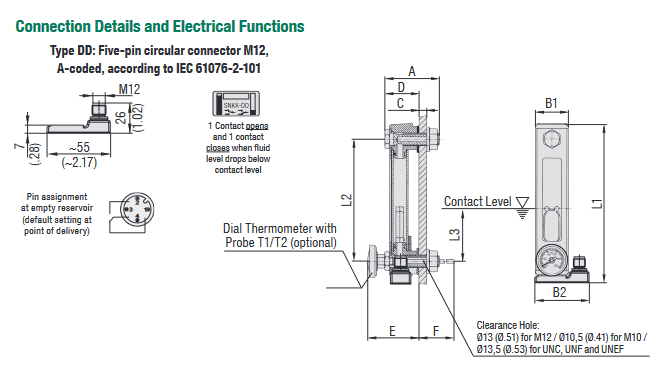

Electrical Specifications
- Magnetic float activates switch when fluid level drops below contact level within 60mm / 2.36in of lower banjo bolt
- Available as a SPDT (Single Pole Double Throw) contact
- Equipped with five-pin circular connector M12 or Deutsch connector
- Direction of the electrical contact box is right to top by default
Technical Data
- IP 67 protection rating: Dust tight and protected against powerful water jets; even immersion (up to 1m / 3.28ft) in water is possible under defined conditions of pressure and time (IP 69K on request)
- Operating temperature range: -30°C ... +80°C / -22°F ... +176°F
- Recommended tightening torque: 8N·m / 5.9ft·lb
- Minimum lateral distance to other magnetic components and cables: 10 mm / .39in
Accessories / Options
- Dial thermometers with probe and a Celsius or a dual Celsius /
- Fahrenheit scale with a temperature display range of up to
- +100°C / +200°F
- Thermo Switches
- Temperature Sensors
- Deutsch Adaptor Cable
