In addition to the individual SPG-DIGI devices, the STAUFF Digital Pressure Gauges are also available as part of a pressure test kit.

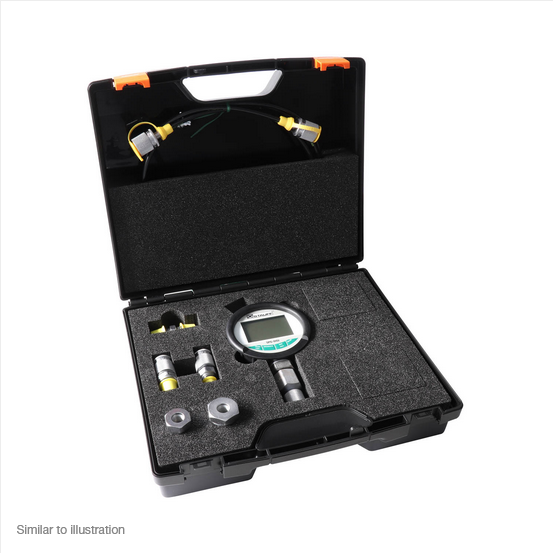

The SMB-DIGI pressure test kits are assembled in various versions, in accordance with customer wishes. All pressure test kits are supplied in a handy case with custom-designed foam inserts.

Components:

Standard Option SMB-DIGI-20

• Digital Pressure Gauge SPG-DIGI
• Test Hose (2 m / 6.56 ft), M16 x 2, pressure-resistant 600 bar (8702 PSI) SMS-20-2000-B-C6F
• Adaptor SDA (G1/4 to M16 x 2) SDA-20-G1/4-C6F
• Hose Connector SSV20-C6F
• Test Coupling SMK20-G1/4-PC-C6F
• Test Coupling SMK20-M10x1-PA-C6F
• Thread Adaptor SRS20-G3/8-B-C6F
• Thread Adaptor SRS20-G1/2-B-C6F
• Operating manual (multilingual) on CD
• Dust cloth

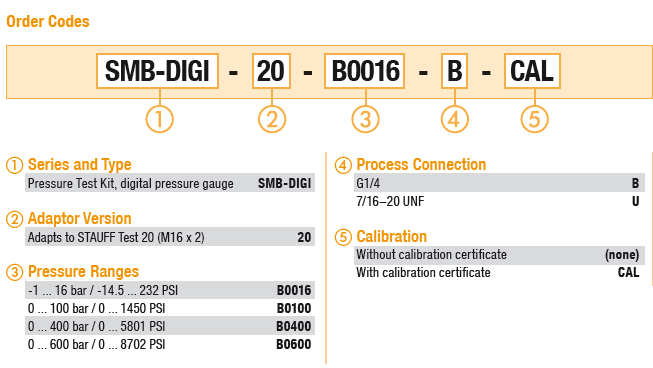

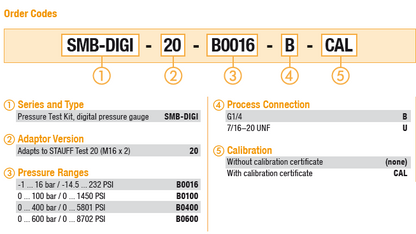

SMB-DIGI-20-B0016-B PRESSURE TEST 20 KIT, PLASTIC 1 X SPG-DIGI 0-16 BAR 1810000247

SMB-DIGI-20-B0100-B PRESSURE TEST 20 KIT, PLASTIC 1 X SPG-DIGI 0-100 BAR 1810000248

SMB-DIGI-20-B0400-B PRESSURE TEST 20 KIT, PLASTIC 1 X SPG-DIGI 0-400 BAR 1810000249

SMB-DIGI-20-B0600-B PRESSURE TEST 20 KIT, PLASTIC 1 X SPG-DIGI 0-600 BAR 1810000239
