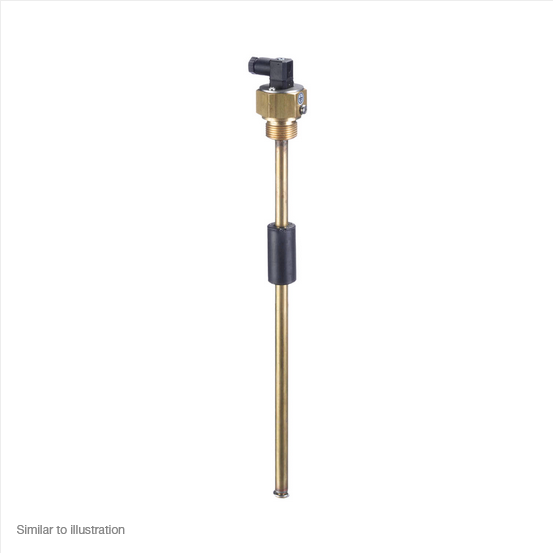

SLTS Series Level-Temperature Switches
Stauff
- Regular price
- Price: $553.35 AUD
- Regular price
-
List Price:
$553.35 AUD - Sale price
- Price: $553.35 AUD
- Unit price
- per
5% off all orders over $1000 | Ends:
1910000472
Couldn't load pickup availability
PRODUCT DESCRIPTION
The STAUFF Level-Temperature Switches (SLTS Series) are
unique in their design and modularity. One of the greatest
advantages is the ability of the end-user to adjust the
switching level. The internal support wire carrying the level
and temperature switches makes it a simple and quick job to
change the level switch position.

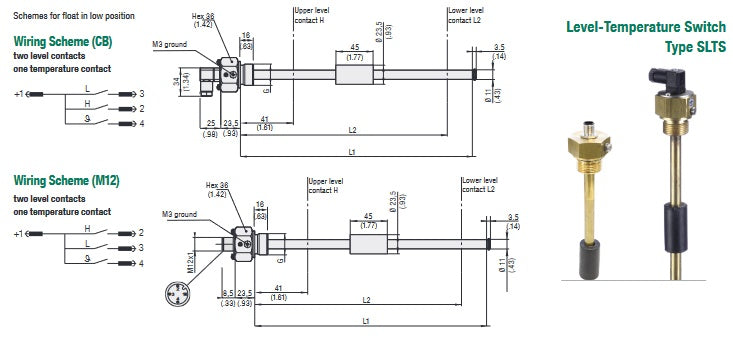

Level contact positions (L, H) are set as given in the order
code. They can be adjusted individually later on.
Please consider a minimum distance of 40 mm / 1.57 in
between the switching points.
Standard electrical function:
Options
unique in their design and modularity. One of the greatest
advantages is the ability of the end-user to adjust the
switching level. The internal support wire carrying the level
and temperature switches makes it a simple and quick job to
change the level switch position.
Level contact positions (L, H) are set as given in the order
code. They can be adjusted individually later on.
Please consider a minimum distance of 40 mm / 1.57 in
between the switching points.
Features
- Suitable for Mineral Oil and HFC fluids,
- other fluids on request
- Either 1 or 2 level contacts available
- 1 integrated temperature switch (optional)
Standard electrical function:
- Level contacts:Normally closed, opens with falling level
- Temperature contacts:Normally closed, opens with rising temperature
- STAUFF Level-Temperature Switches SLTS are available with other electrical functions on request.
Options
- 1NPT and others available on request
- max. 115 Volt switching (for thread N16 only)
- Deutsch Adaptor Cable
Materials
- Stem:Brass
- Float/Sealing:NBR (Buna-N®)
- Max. operating temp.:+80°C / +176°F
Electrical Data and Output
- Max. current level contact: 0.5 A
- Max. current temp. contact: 2.0 A
- Contact load level contact: 10 VA
- Max. operating voltage:(See ordering code)
- Specific gravity of fluid:≥0,8 kg/dm3
- Hysteresis:+18°C / +64.4°F
Protection Rating
IP 65 protection rating: Dust tight and protected against water jets
