Product Description:

STAUFF SF series High Pressure Filters are designed for in-line hydraulic applications, with a maximum operating pressure of 420 bar / 6000 PSI. Used together with STAUFF SE series Filter Elements, a high efficiency of contaminant removal is assured. The high dirt-hold capacity of the elements ensures long service life and, as a result, reduced maintenance costs.

Technical Data:

Construction

• Designed for in-line assembly, with threaded mounting holes on top of the head.

Materials

• Filter head: Spheroidal Graphite Cast Iron
• Filter bowl: Cold Drawn Steel
• O-rings: NBR (Buna-N®), FPM (Viton®), EPDM (Ethylene-Propylene-Diene-Monomer-Rubber)
• Support ring: PTFE (Polytetrafluoroethylene)

Port Connections

• BSP
• NPT
• SAE O-ring thread
• SAE Code 61 flange
• SAE Code 62 flange

   Other port connections available on request.

Operating Pressure

• 420 bar / 6000 PSI

Burst Pressure

• 1260 bar / 18275 PSI

Temperature Range

• -10 °C ... +100 °C / +14 °F ... +212 °F

Filter Elements

• Specifications see page C22 / C41

Media Compatibility

• Mineral oils, other fluids on request

Options and Accessories:

Valve

• Bypass valve: Allows unfiltered oil to bypass the contaminated element once the opening pressure has been reached, a differential  pressure of 6 + 0,5 bar / 87 + 7.25 PSI ∆p is the standard setting. Other settings available upon request.
• Reverse flow valve: Allows reverse flow through the filter head without backflushing the element.
• Non-return valve: Prevents draining of the delivery line during element change.
• Multi-function valve: Opening pressure 6 +0,5 bar / 87 +7.25 PSI
• Bypass, reverse flow capability and non-return valve combined in one valve.

Clogging Indicator

• Standard actuating pressure: 5 -0,5 bar / 72.5 -7.25 PSI ∆p

Other actuating pressure settings are available upon request.

• Available indicators: Visual Electrical

Visual-electrical (24 V DC, 110 V AC, 230 V AC versions)

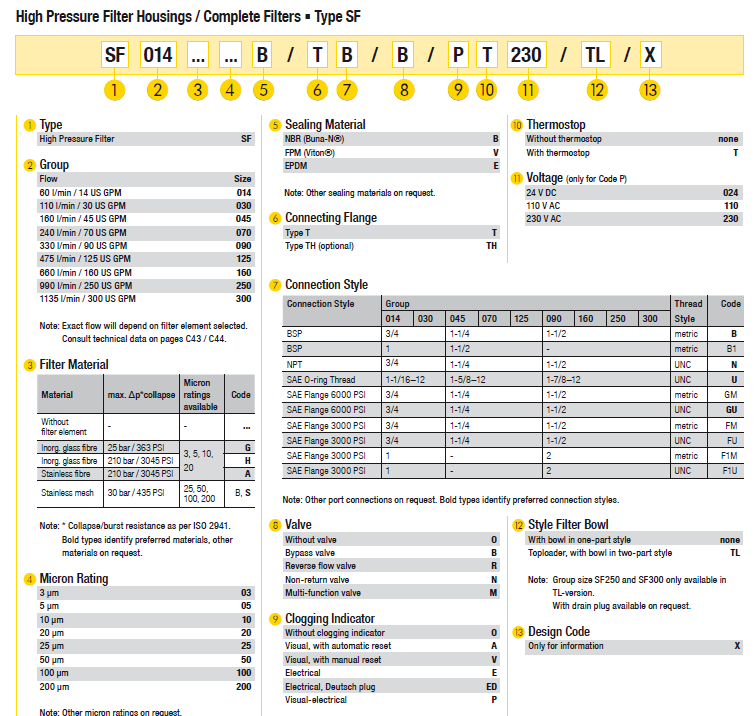

SF160XXXB-TGM/MV 660L PRESS. FILTER-MULTI FUNCTION VALVE SF-160-O-O-B-T-C624M-M-V 1010020760
