AP Series Adaptor Plates for Dessicant Breathers
Stauff
- Regular price
- Price: $151.50 AUD
- Regular price
-
List Price:
$151.50 AUD - Sale price
- Price: $151.50 AUD
- Unit price
- per
5% off all orders over $1000 | Ends:
1910000487
Couldn't load pickup availability
PRODUCT DESCRIPTION

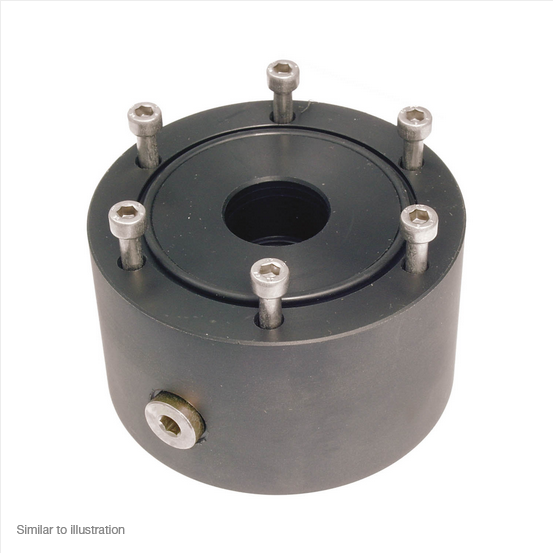

Designed to simplify the installation of Desiccant Air Breathers and enable the use of a visual contamination indicator.

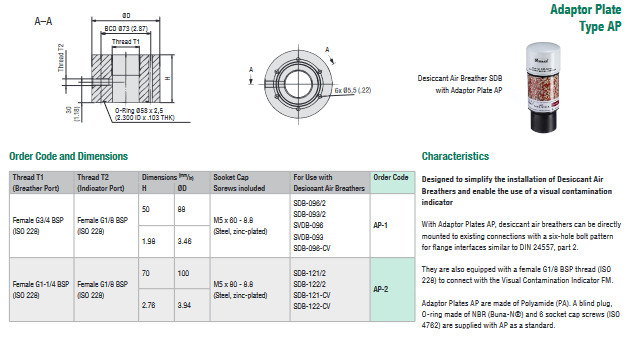

With Adaptor Plates AP, desiccant air breathers can be directly mounted to existing connections with a six-hole bolt pattern for flange interfaces similar to DIN 24557, part 2.
They are also equipped with a female G1/8 BSP thread (ISO 228) to connect with the Visual Contamination Indicator FM.
Adaptor Plates AP are made of Polyamide (PA). A blind plug, O-ring made of NBR (Buna-N®) and 6 socket cap screws (ISO 4762) are supplied with AP as a standard.
With Adaptor Plates AP, desiccant air breathers can be directly mounted to existing connections with a six-hole bolt pattern for flange interfaces similar to DIN 24557, part 2.
They are also equipped with a female G1/8 BSP thread (ISO 228) to connect with the Visual Contamination Indicator FM.
Adaptor Plates AP are made of Polyamide (PA). A blind plug, O-ring made of NBR (Buna-N®) and 6 socket cap screws (ISO 4762) are supplied with AP as a standard.
