Product Description:

STAUFF Pressure Filters have a wide range of clogging indicators available. If no indicator is specified, the port is sealed by a plug (HI-O). The clogging indicators are actuated by the differential pressure (Δp) across the element. The special piston design minimizes the effects of peak pressures in the system. An optional thermal lockout (thermo-stop) is available to prevent false indication under cold start conditions. Fluid temperature have to be at least +20 °C / +68 °F for the indicator to function.

Technical Data:

Materials

• Body: Stainless Steel
• Sealings: NBR (Buna-N®), FPM (Viton®), EPDM (Ethylene-Propylene-Diene-Monomer-Rubber)

Thread

• G ½

Differential Pressure

• 5-0,5 bar / 72.5-7.25 PSI pressure setting (other settings on request)

Electrical

• Plug according to DIN-EN 175301-803 A (DIN 43650-A).
• Screwed cable gland PG11
• Protection rating (DIN 40050) IP65

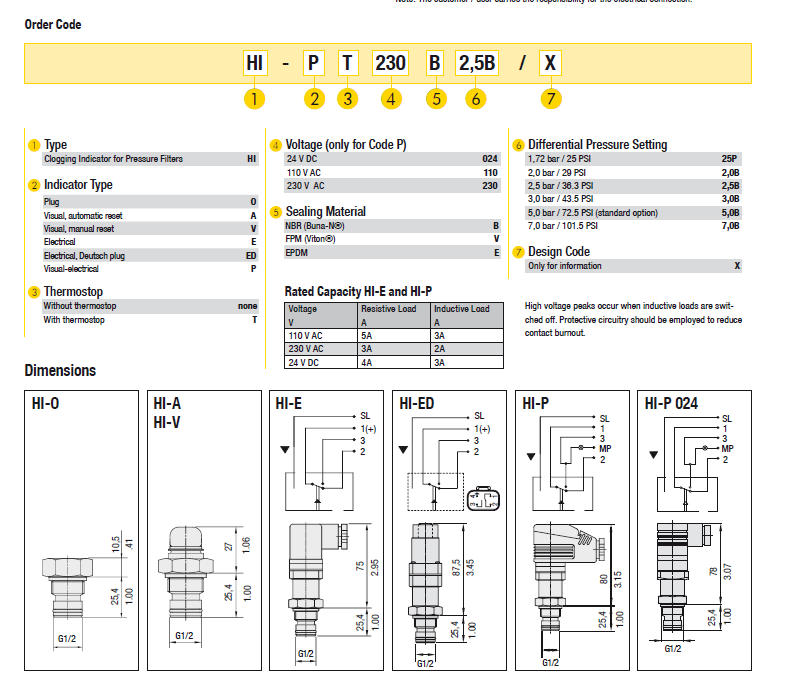

• Both NO and NC contacts are available in the switch, rated capacity: see chart below
• Deutsch plug

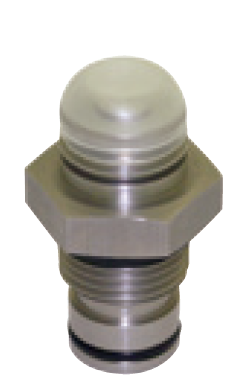

The visual clogging indicators are available in the following configurations:

• Manual reset: The indicator continues to display the clogged signal even through the Δp may have fallen. Pressing the plastic cover down will reset the indicator.
• Automatic reset: The clogged signal will disappear when the Δp drops below the setting for the indicator.

Electrical and visual-electrical clogging indicators are only available with automatic reset.

Note: The customer / user carries the responsibility for the electrical connection.

HI-O INDICATOR PLUG Plug-SF-HI-O/2 1030000010
